Name:55inch 1.8 mm bezel 500 Nit Samsung LCD Video Walls
Model:LW55SL
Panel:SAMSUNG Brand
Brightness:500 Nit
Bezel:1.8mm

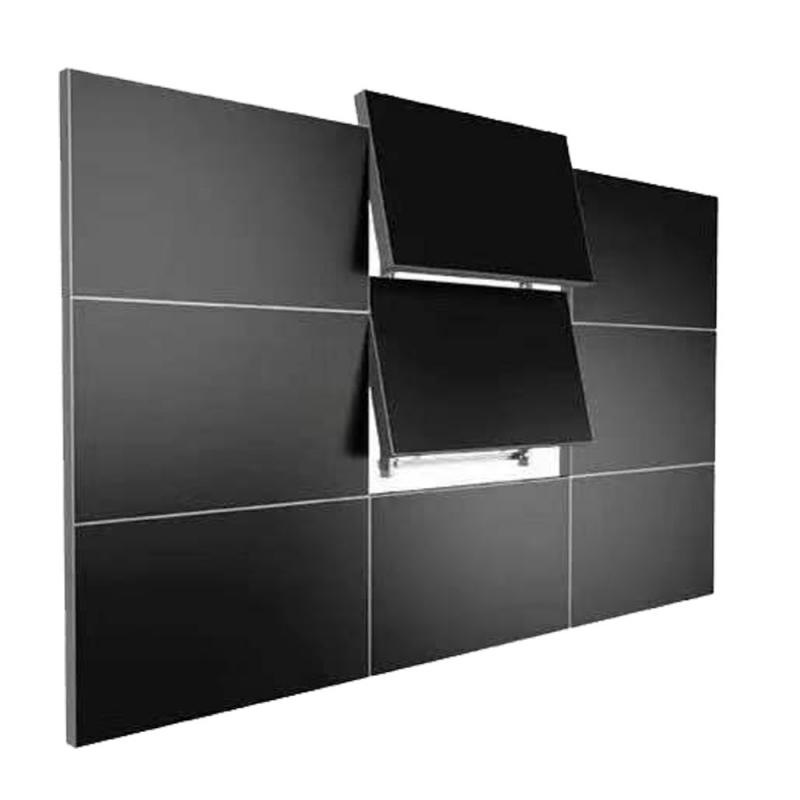

Installation:Wall Mount/Floor Upstand/Front Access
Dimension:55inch

Product Description




Display

Diagonal  Dimension

55"

Type

Direct LED-samsungPanel

Pixel  Pitch

H/V:0.55926

Viewing  Angle

178°(H)/178°(V)

Display Area

1209.6mm(H)  *680.4mm(V)

Brightness

500 Nit  (Typ)

Aspect  Ratio

16:9

Response  Time

 ≤8ms(Gray to Gray)

Physical  Resolution

1920×1080(FULL HD)

Display  Colors

16.7M (8bit)

Bezel  Width

1.7mm

MTBF

≥60,000 hrs

Interface

HDMI In

1

DVI In

1

VGA In

1

DVI In/Loop Out( optional)

½

CVBS In/Out

1/1

RS232  In/Out(RJ45 Port)

2/2

Audio  Out(optional)

1

Remote  Control

Optional

Mechanical

Outline  Dimension(W*H*D)

1213.5mm47.788 ")*684.3mm (22.94")*120mm(4.72")

Mount Type

Rear  Access/Front Access/Cabinet

Base Stand Type

Floor  Upright/Moving

Net. Weight

40Kg(88.18  lbs.)

Max.Combination

15*15

Default Colour

Black

Environment

Max. Consumption

160W(540  Btu/hour)

Electrical Ratings

AC  100 ~ 240V (50/60Hz)

Operating Temperature

0℃(32℉)  ~ 40℃(104℉)

Operating Humidity

20%-90%  (Non-condensing)

Storage Temperature

-20℃(-4℉)  ~ 65℃(149℉)

Storage Temperature

5%-90%  (Non-condensing)
